What Is Multi-Media Filtration?

Keywords:Multi-Media Filtration| Published: 2026-02-05 | Author: DIEN WATER GROUP

Multi-Media Filtration System

High-Efficiency Pretreatment for Industrial Water Treatment

Multi-media filtration is an advanced mechanical filtration process that uses multiple layers of filter media with different densities and particle sizes to remove suspended solids, turbidity, and particulate contaminants from water.

It is widely used as pretreatment equipment in industrial, commercial, and municipal water treatment systems.

What Is Multi-Media Filtration?

A multi-media filter typically consists of several layers of filtration media, such as:

  • Anthracite

  • Quartz sand

  • Garnet or magnetite

These media layers work together to provide deep bed filtration, allowing higher dirt-holding capacity and better filtration efficiency than single-media filters.

How Multi-Media Filtration Works

  1. Raw water enters from the top of the filter

  2. Large particles are trapped in the upper coarse media

  3. Smaller particles are captured in finer lower layers

  4. Clean water exits from the bottom

When pressure loss increases, the system performs backwashing to clean the filter media and restore performance.

Key Advantages of Multi-Media Filtration

✔ Higher filtration efficiency than sand filters
✔ Larger suspended solids holding capacity
✔ Lower backwashing frequency
✔ Stable operation under high flow rates
✔ Long service life of filter media

Typical Applications

  • Reverse osmosis (RO) pretreatment

  • Industrial process water filtration

  • Drinking water pretreatment systems

  • Wastewater pretreatment

  • Cooling tower circulation water

  • Boiler feed water pretreatment

  • Well water treatment

Multi-Media Filtration vs Sand Filtration

Item Sand Filter Multi-Media Filter
Filter Media Single layer Multiple layers
Filtration Efficiency Medium High
Dirt Holding Capacity Lower Higher
Backwash Frequency Higher Lower
Industrial Suitability Basic Advanced

Multi-media filtration is recommended when higher water quality stability is required before RO membranes or precision equipment.

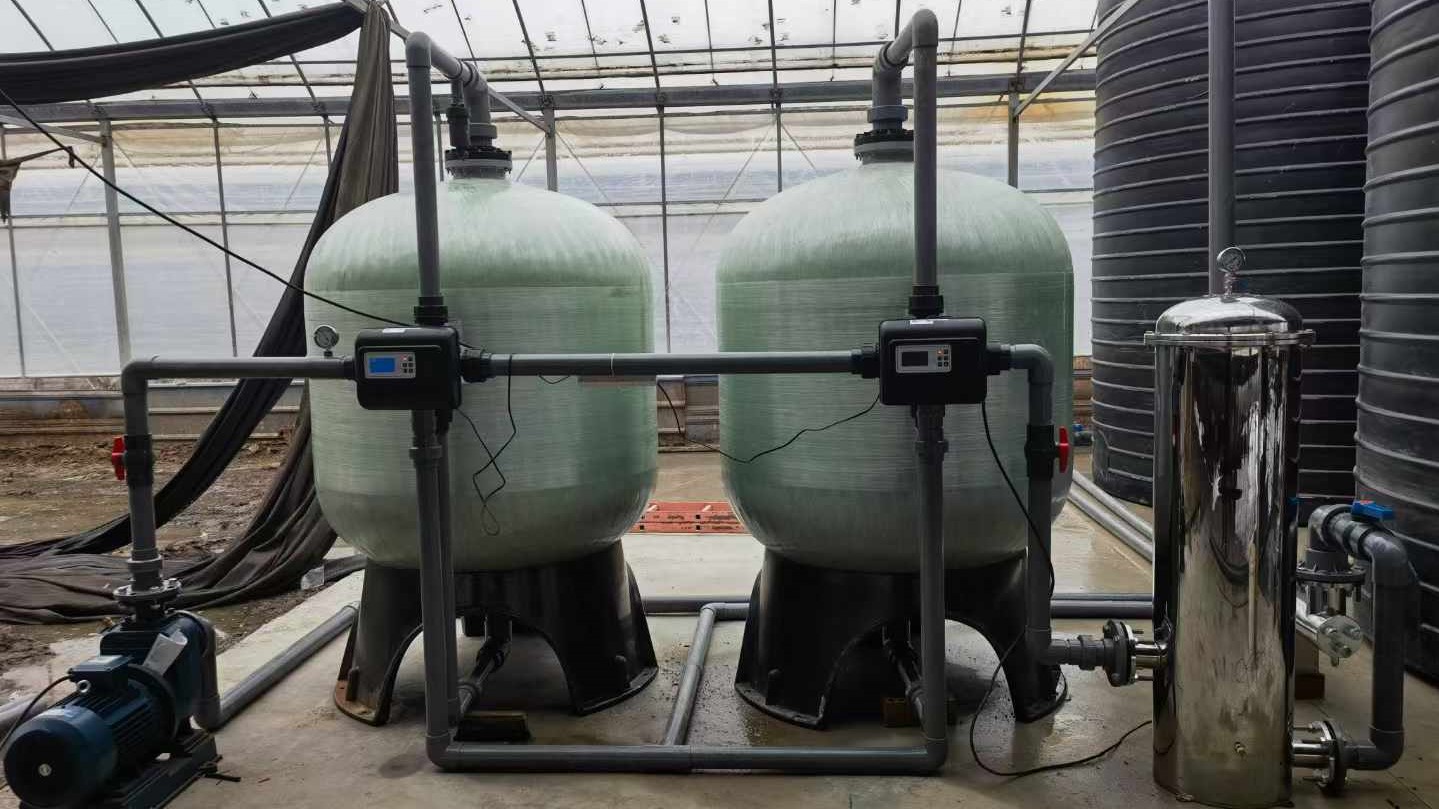

System Configuration Options

  • Tank material: FRP / Carbon steel / Stainless steel

  • Control system: Manual valve / Automatic control valve

  • Flow rate: Customized from small to large industrial capacity

  • Single unit or multi-tank parallel systems

Why Choose Our Multi-Media Filtration Systems?

  • Over 10 years of experience in water treatment equipment

  • Factory direct manufacturing

  • Customized design based on raw water analysis

  • Reliable performance for industrial applications

  • OEM & ODM services available

Integrated Pretreatment Solutions

Our multi-media filtration systems are commonly combined with:

  • Activated carbon filters

  • Water softeners

  • Ultrafiltration systems

  • Reverse osmosis systems

to form a complete pretreatment solution.

Get a Customized Multi-Media Filtration Solution

Looking for a reliable multi-media filtration system for your project?
We provide system design, equipment manufacturing, and technical support.

👉 Contact us today for technical consultation and pricing.
